CLINY

Cholangio-Entero Tube

Features and Advantages

1.The tube makes it possible to reduce jaundice
 physiologically after PTCD.
2.The tube doesn’t dislocate from the position
 where is originally placed because the tube is
 knotted with suture at the fascial layer.
3.It is very easy to remove the tube and replace
 it with a new one without using endoscope, if
 necessary.
4.It is very easy to change to external drainage
 system (PTCD) by making about 1cm incision on
 the skin, if necessary.
5.The tube helps to relieve patients’ mental and
 physical pains and to improve their quality of life.

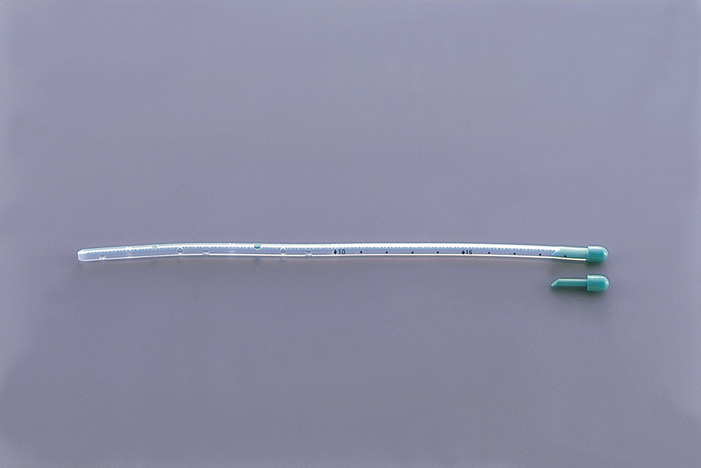

Enlarge product image

Specification

Length 400mm
Product Code Size O.D. - I.D. (mm) Applicable G/W Side holes Depth marks
003 040 0080 8Fr 2.7 - 1.5 0.64mm (0.025") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
003 040 0100 10Fr 3.3 - 1.8 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
003 040 0120 12Fr 4.0 - 2.2 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
003 040 0140 14Fr 4.7 - 2.5 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
003 040 0160 16Fr 5.3 - 3.0 0.97mm (0.038") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
003 040 0180 18Fr 6.0 - 3.4 0.97mm (0.038") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.

5 pieces per box, Sterilized with EtO Gas
