CLINY

All Silicone Nephrostomy Balloon Catheter(Green and Transparent Types)

Features and advantages

1. The flattened balloon specially can be indwelt or
  fixed tightly within the smallest space.
2. The short tip of the catheter is suitable for the
  placement in the smallest space of the renal pelvis.
3. 100% silicone will not injure tissue, thus, the
  continuous and efficient urination with comforts of
  patients can be expected.
4. The sturdy and flexible shaft makes the catheteri-
  zation into the fistula easy.
5. The depth marks on the tube are easily and
  precisely seen when the catheter is inserted or
  exchanged.

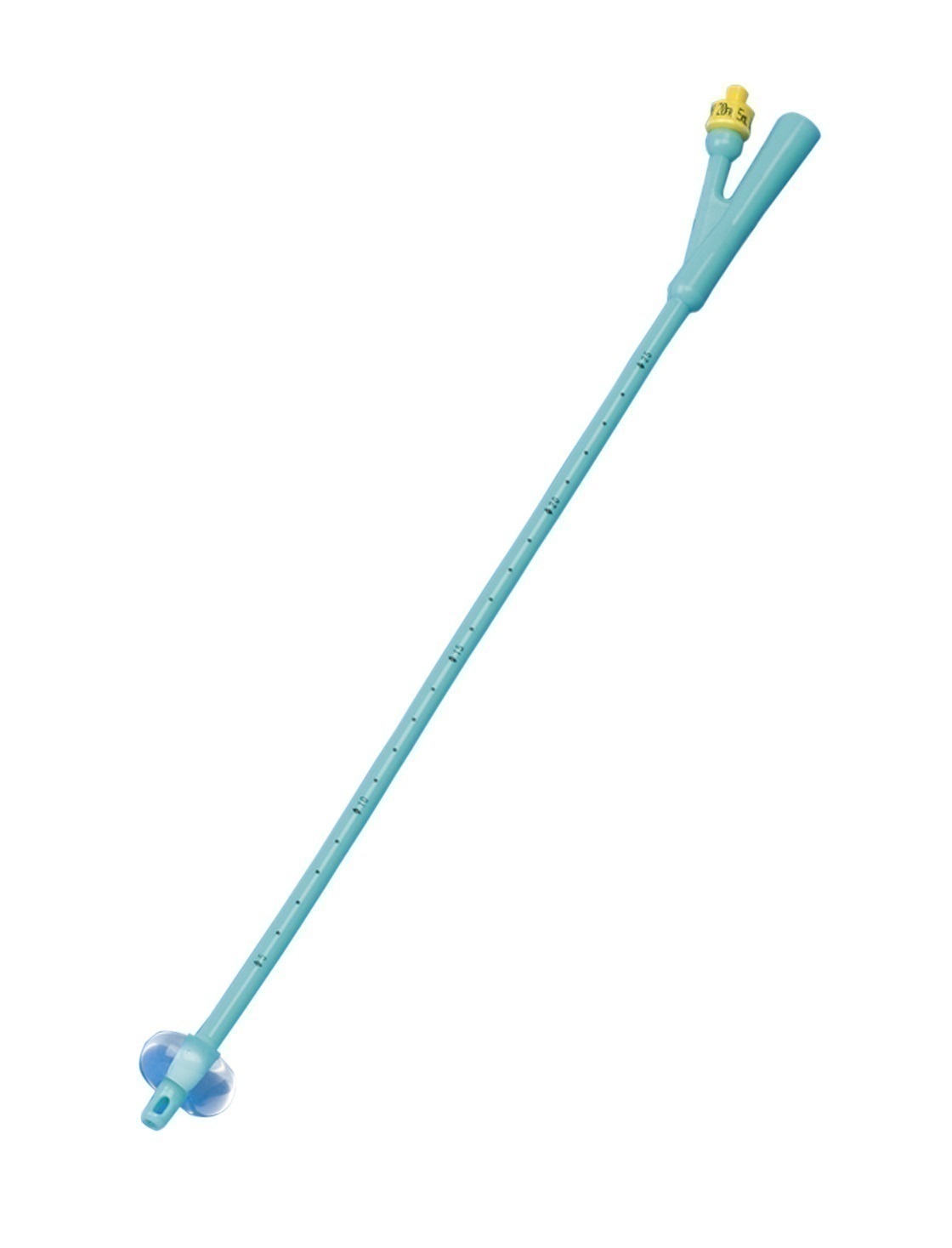

Enlarge product image

Specification

GBM Type (Green Body with Green Radiopaque Line)
Product No. Size Balloon Volume Length Valve Color Depth Mark
05-1608   8Fr 1mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1610 10Fr 1.5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1612 12Fr 2mL 240mm
340mm
420mm
430mm
White Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1614 14Fr 3mL 240mm
340mm
420mm
430mm
Green Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1616 16Fr 5mL 240mm
340mm
420mm
430mm
Orange Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1618 18Fr 5mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1620 20Fr 5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1622 22Fr 5mL 240mm
340mm
420mm
430mm
Violet Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1624 24Fr 5mL 240mm
340mm
420mm
430mm
Blue Placed at 10mm
intervals between
50 and 250mm
from the tip

10pcs per box, Sterilized with EtO Gas

GCM Type (Green Body with Green Radiopaque Line)
Product No. Size Balloon Volume Length Valve Color Depth Mark
05-1708   8Fr 1mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1710 10Fr 1.5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1712 12Fr 2mL 240mm
340mm
420mm
430mm
White Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1714 14Fr 3mL 240mm
340mm
420mm
430mm
Green Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1716 16Fr 5mL 240mm
340mm
420mm
430mm
Orange Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1718 18Fr 5mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1720 20Fr 5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1722 22Fr 5mL 240mm
340mm
420mm
430mm
Violet Placed at 10mm
intervals between
50 and 250mm
from the tip
05-1724 24Fr 5mL 240mm
340mm
420mm
430mm
Blue Placed at 10mm
intervals between
50 and 250mm
from the tip

10pcs per box, Sterilized with EtO Gas

WBS Type (Transparent Body with White Radiopaque Line)
Product No. Size Balloon Volume Length Valve Color Depth Mark
05-9508   8Fr 1mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9510 10Fr 1.5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9512 12Fr 2mL 240mm
340mm
420mm
430mm
White Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9514 14Fr 3mL 240mm
340mm
420mm
430mm
Green Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9516 16Fr 5mL 240mm
340mm
420mm
430mm
Orange Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9518 18Fr 5mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9520 20Fr 5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9522 22Fr 5mL 240mm
340mm
420mm
430mm
Violet Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9524 24Fr 5mL 240mm
340mm
420mm
430mm
Blue Placed at 10mm
intervals between
50 and 250mm
from the tip

10pcs per box, Sterilized with EtO Gas

WBL Type (Transparent Body with White Radiopaque Line)
Product No. Size Balloon Volume Length Valve Color Depth Mark
05-9608   8Fr 1mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9610 10Fr 1.5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9612 12Fr 2mL 240mm
340mm
420mm
430mm
White Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9614 14Fr 3mL 240mm
340mm
420mm
430mm
Green Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9616 16Fr 5mL 240mm
340mm
420mm
430mm
Orange Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9618 18Fr 5mL 240mm
340mm
420mm
430mm
Red Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9620 20Fr 5mL 240mm
340mm
420mm
430mm
Yellow Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9622 22Fr 5mL 240mm
340mm
420mm
430mm
Violet Placed at 10mm
intervals between
50 and 250mm
from the tip
05-9624 24Fr 5mL 240mm
340mm
420mm
430mm
Blue Placed at 10mm
intervals between
50 and 250mm
from the tip

10pcs per box, Sterilized with EtO Gas

Type of Tip
