CLINY

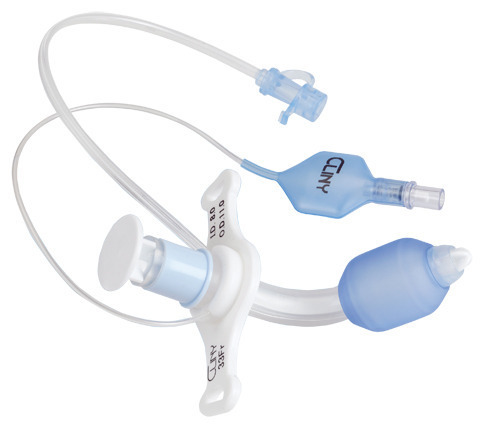

CLINY Tracheostomy Tube

Features and advantages

1.Cannula/shaft combined two silicone materials.
2.Suction line with excellent aspiration efficiency.

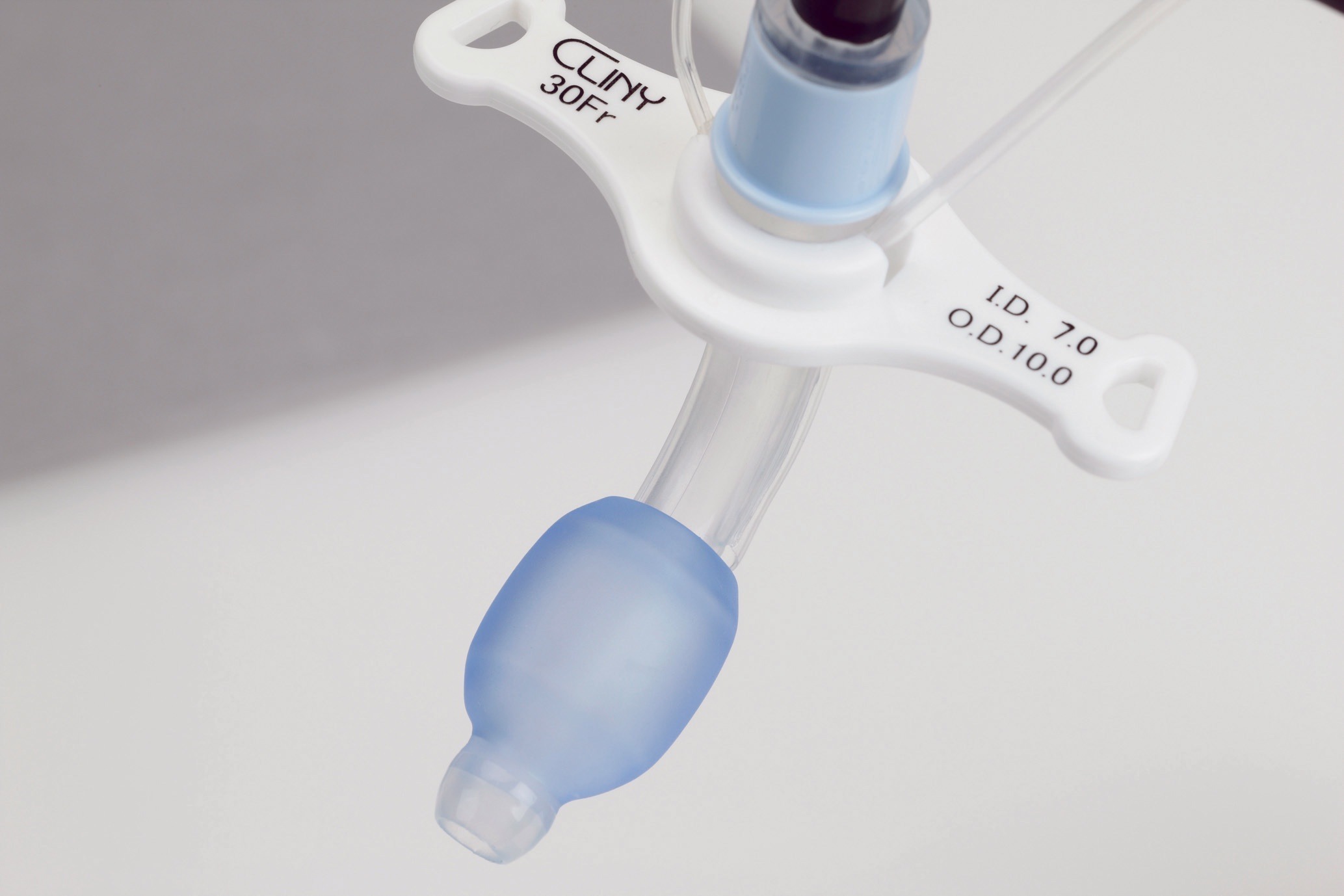

3.Low-leakage Soft Cuff.

Enlarge product image

Specification

With Cuff
Product Code Size I.D.  O.D. Length of Cannula
800 001 0985 22Fr 5.0mm 7.3mm 57.0mm
800 001 0986 26Fr 6.0mm 8.7mm 63.0mm
800 001 0987 30Fr 7.0mm 10.0mm 71.0mm
800 001 1578 32Fr 7.5mm 10.7mm 73.0mm
800 001 0988 33Fr 8.0mm 11.0mm 75.0mm
800 001 1579 35Fr 8.5mm 11.7mm 78.0mm
800 001 0989 37Fr 9.0mm 12.3mm 80.0mm
800 001 0090 40Fr 9.5mm 13.3mm 83.0mm

5 pcs per box, Sterilized with EtO Gas

With Cuff, Without Suction Line
Product Code Size I.D.  O.D.  Length of Cannula
800 001 2520 22Fr 5.0mm 7.3mm 57.0mm
800 001 2521 26Fr 6.0mm 8.7mm 63.0mm
800 001 2522 30Fr 7.0mm 10.0mm 71.0mm
800 001 2523 32Fr 7.5mm 10.7mm 73.0mm
800 001 2524 33Fr 8.0mm 11.0mm 75.0mm
800 001 2525 35Fr 8.5mm 11.7mm 78.0mm
800 001 2526 37Fr 9.0mm 12.3mm 80.0mm
800 001 2527 40Fr 9.5mm 13.3mm 83.0mm

5 pcs per box, Sterilized with EtO Gas

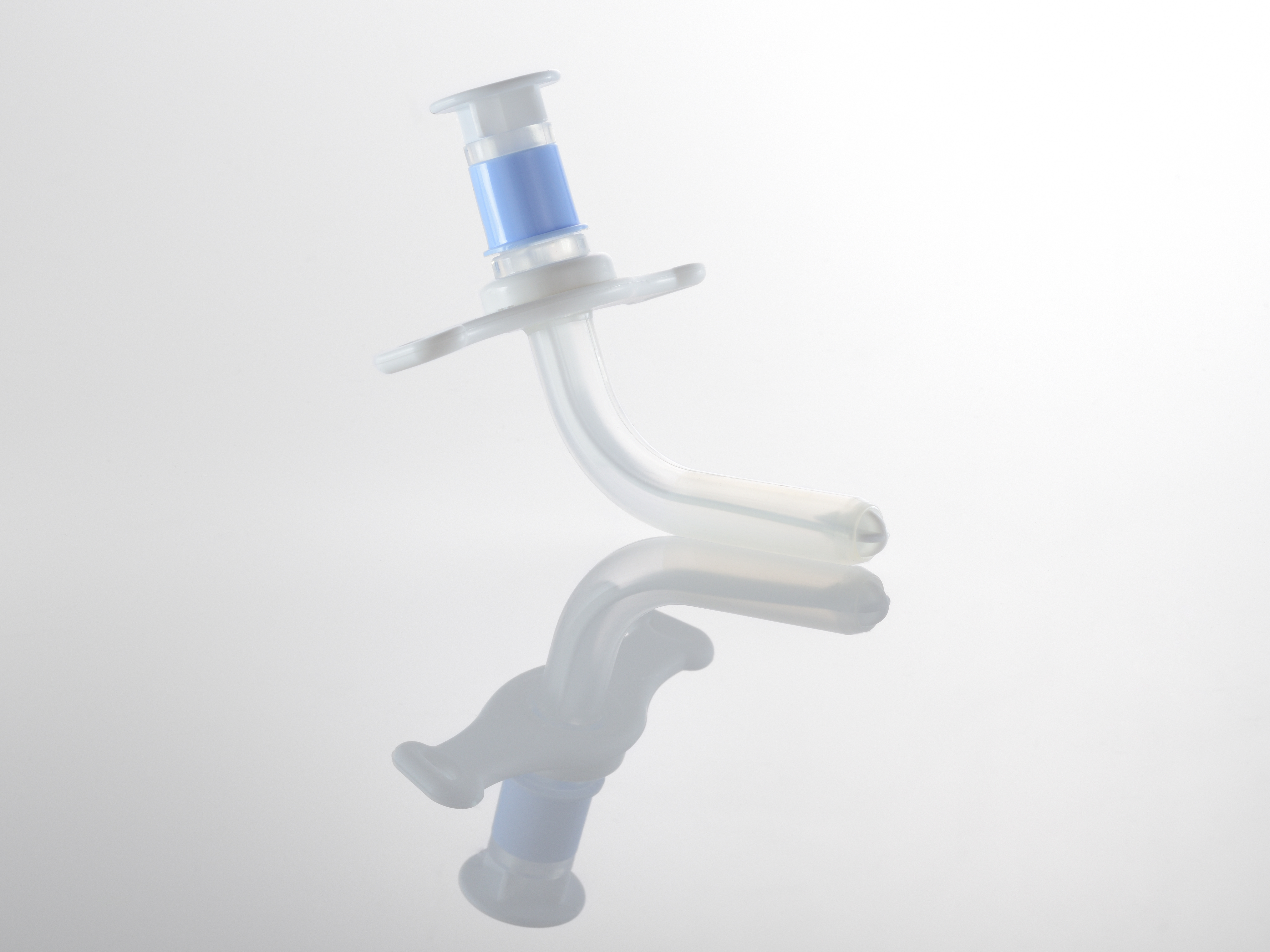

Without Cuff
Product Code Size I.D.  O.D.  Length of Cannula
800 001 2512 22Fr 5.0mm 7.3mm 57.0mm
800 001 2513 26Fr 6.0mm 8.7mm 63.0mm
800 001 2514 30Fr 7.0mm 10.0mm 71.0mm
800 001 2515 32Fr 7.5mm 10.7mm 73.0mm
800 001 2516 33Fr 8.0mm 11.0mm 75.0mm
800 001 2517 35Fr 8.5mm 11.7mm 78.0mm
800 001 2518 37Fr 9.0mm 12.3mm 80.0mm
800 001 2519 40Fr 9.5mm 13.3mm 83.0mm

5 pcs per box, Sterilized with EtO Gas
